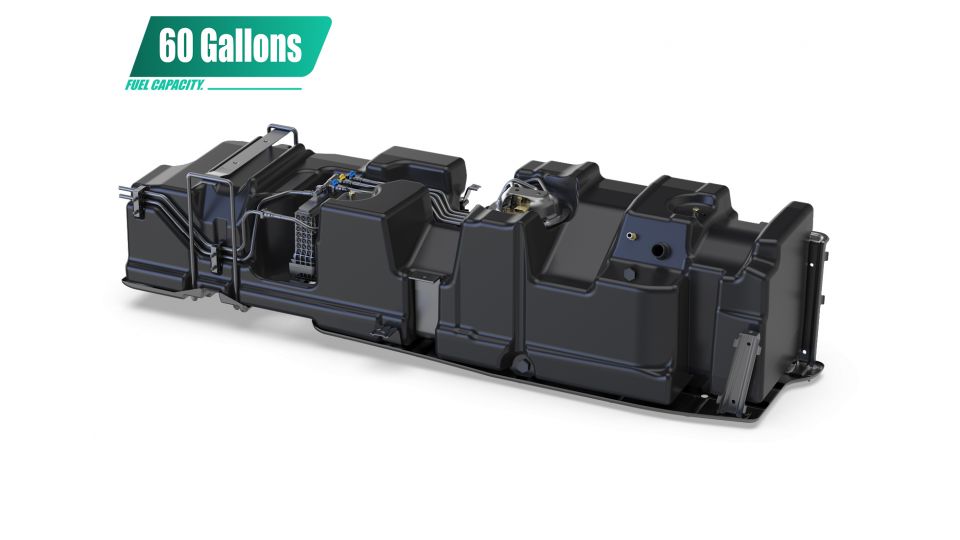

60 Gallon Replacement Fuel Tank For 2017-2023 Ford Powerstroke 6.7L Crew Cab Short Bed S&B Tanks
S&B Tanks
SKU:10-1004-BKJF
Couldn't load pickup availability
60 Gallon Replacement Tank For 2017-2023 Ford Powerstroke 6.7L, Crew Cab Short Bed. This tank hold approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
Discover How S&B Tanks Can Help You! Save Time. Go Further. Get More Out of Your Truck - Being stuck with only a 34 gallon tank isn't fair. You spend more time looking for fuel stations, are stuck paying high fuel prices, and are slowed down by this inconvenience.
Transfer Pump And Aftermarket Lift Pump-Transfer Pump: Add on our GPI Transfer pump kit. Save space in your bed and pull fuel out of your large S&B Tank.(coming soon)
Aftermarket Lift Pump: Want to install an aftermarket lift pump? Our patent pending integrated sump design allows for easy install. Easy Recalibration Distance To Empty
S&B is teaming up with EZ Lynk to make adjusting your Distance to Empty (DTE) Free and Easy on your 2017+ Powerstroke.
Your analog fuel gauge will still be accurate after installing the tank, but your Driver Information Center computer will need to be updated with the correct fuel capacity.

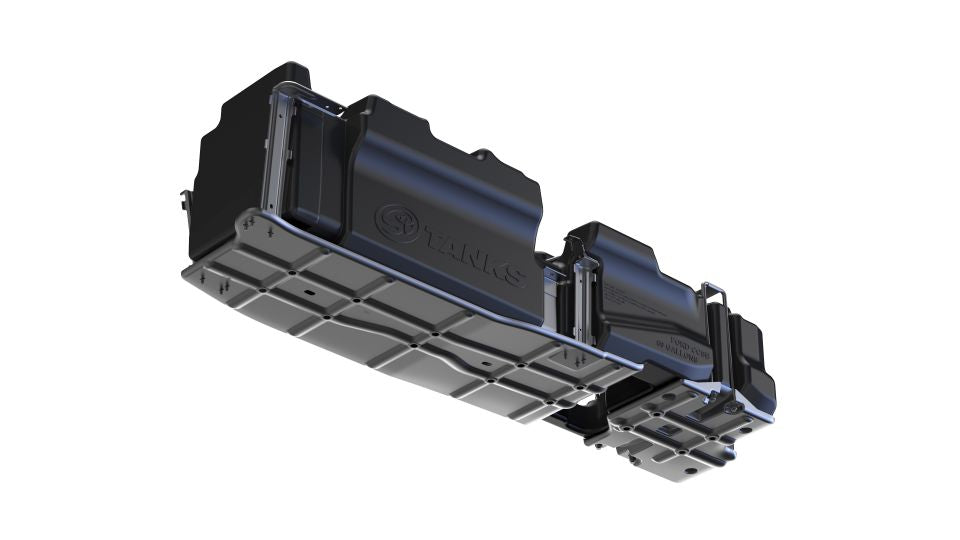

Skid Plate - If you don't have a skidplate on your truck already, no problem! But if you do, we designed the S&B Tank to allow you to reuse the factory skidplate. We also designed a smaller, factory style skidplate to cover the front of the larger S&B Tank. 60 Gallon Replacement Tank For 2017-2023 Ford Powerstroke 6.7L, Crew Cab Short Bed
Install can be done in 2-3 hours and does not require any cutting, drilling, or modification. Patents Pending
According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
Description:
- 60 Gallon Replacement Tank
- For 2017-2023 Ford Powerstroke 6.7L, Crew Cab Short Bed
- Install can be done in 2-3 hours
- Does not require any cutting, drilling, or modification
| COMPATIBLE WITH GOOSENECK AND 5TH WHEEL | YES |
| COMPATIBLE WITH OE SKID PLATE | YES |
| DIMENSIONS | 76.02" X 20.69" X 19.08" |
| DRAIN | NO |
| EMBEDDED FITTING THREAD SIZE | 1/2" NPT |
| GROUND CLEARANCE COMPARE TO OE TANK | 1.75" LOWER |
| SENDING UNIT | OEM |
| STRAPS INCLUDED | YES |
| SUMP | NO |
| S&B CAPACITY (APPROXIMATE) | 60 GALLONS |
| TANK TYPE | MIDSHIP |
| TRANSFER PUMP READY | YES |
| WEIGHT DRY | 50LBS |
| YEAR | MAKE | MODEL | ENGINE |
| 2017-2023 | FORD | F-250 | 6.7L, DIESEL |
| 2017-2023 | FORD | F-350 | 6.7L, DIESEL |
| 2017-2023 | FORD | F-450 | 6.7L, DIESEL |
Product Dimensions
Product Dimensions
In-stock items will ship in 24-48 hours after order is placed.
