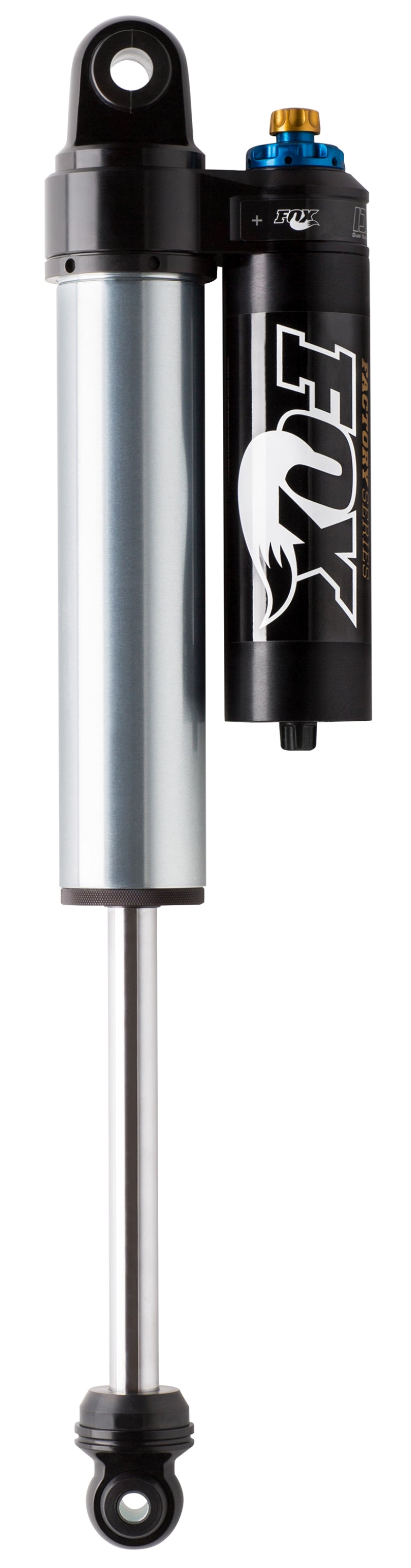

Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Installation Instructions
Technical Bulletin
Technical Drawing


This Part Fits:

Year	Make	Model	Submodel
2010-2014	Ford	F-150	FX2
2004-2014	Ford	F-150	FX4
2006-2008,2010-2012	Ford	F-150	Harley-Davidson Edition
2005-2020	Ford	F-150	King Ranch
2004-2020	Ford	F-150	Lariat
2011	Ford	F-150	Lariat Limited
2013-2014,2016-2020	Ford	F-150	Limited
2009-2020	Ford	F-150	Platinum
2018-2020	Ford	F-150	Police Responder
2017-2020	Ford	F-150	Raptor
2016-2020	Ford	F-150	SSV
2004-2014	Ford	F-150	STX
2010-2014	Ford	F-150	SVT Raptor
2008	Ford	F-150	THE 60TH ANNIVERSARY EDITION
2004-2020	Ford	F-150	XL
2004-2020	Ford	F-150	XLT
